Emulate device sensors

Use the Sensors tool to emulate sensor input of any device.

Overview

The Sensors tool lets you do the following:

• Override geolocation
• Simulate device orientation
• Simulate touch events when clicking
• Emulate idle detector state
• Emulate hardware concurrency
• Emulate CPU pressure

To simulate a viewport of a mobile device and throttle the network and CPU, see Emulate mobile devices (Device Emulation).

Open the Sensors tool

1. Open a webpage, such as the TODO app demo page, in a new window or tab.

2. Right-click the webpage, and then select Inspect.

   DevTools opens.

3. Press Esc once or twice, so that the Quick View panel is open at the bottom of DevTools.

4. In the Quick View panel, click the More tools button, and then select Sensors.

   The Sensors tool opens in the Quick View panel at the bottom of DevTools.

Open the Sensors tool by using the Command Menu

1. Depending on your operating system, press the following to open the Command Menu:

   • On Windows, Linux, or ChromeOS, Control+Shift+P.
   • On MacOS, Command+Shift+P.



2. Type sensors, select Show Sensors, and then press Enter.

   The Sensors tool opens in Quick View at the bottom of DevTools.

Override geolocation

Many websites take advantage of user ___location in order to provide a more relevant experience for their users. For example, a weather website might show the local forecast for a user's area, once the user has granted the website permission to access their ___location. To access a user's geolocation from your website, see Geolocation API, at MDN.

If you're building a UI that changes depending on where the user is located, you probably want to make sure that the site behaves correctly in different places around the world.

To override your geolocation, open the Sensors tool and, from the Location list select one of the following:

• One of the preset cities, like Tokyo.
• Other to enter custom longitude and latitude coordinates.
• Select Location unavailable to see how your site behaves when the user's ___location is not available.

Simulate device orientation

Mobile devices have sensors which can detect their physical orientation. Websites such as web-based games or mapping applications can make use of the device orientation to provide a better experience. To learn about how to detect the device orientation, see Device orientation events, at MDN.

If you're building a UI that changes depending on the orientation of the user's device, you need to test your UI under different device orientations.

To simulate different device orientations, open the Sensors tool, and then, from the Orientation list, select one of the following:

• One of the preset orientations, like Portrait upside down:



• Custom orientation, to provide your own exact orientation.

  After selecting Custom orientation, the alpha, beta, and gamma fields are enabled. To understand how these axes work, see:

  • DeviceOrientationEvent: alpha property
  • DeviceOrientationEvent: beta property
  • DeviceOrientationEvent: gamma property

  After selecting Custom orientation, you can also set a custom orientation by dragging the Orientation Model. Hold Shift before dragging, to rotate along the alpha axis:



Simulate touch events when clicking

To test touch events on your website, even if you're testing on a device without a touch screen:

1. Open a webpage, such as the TODO app demo page, in a new window or tab.

2. Right-click the webpage, and then select Inspect.

   DevTools opens.

3. Press Esc once or twice, so that the Quick View panel is open at the bottom of DevTools.

4. In the Quick View panel, click the More tools button, and then select Sensors.

   The Sensors tool opens in the Quick View panel at the bottom of DevTools.

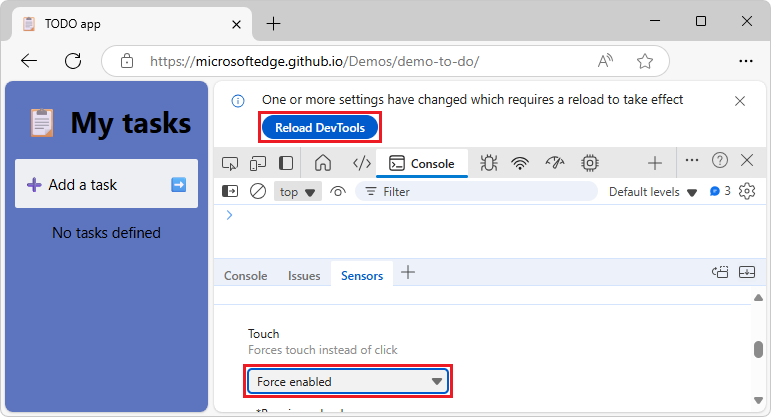

5. In the Sensors tool, scroll down to the Touch dropdown menu, and then select Force enabled:



6. Click the Reload DevTools button at the top of DevTools.

Emulate idle detector state

The Idle Detection API lets you detect inactive users and react on idle state changes. With DevTools, you can emulate idle state changes for both the user state and screen state instead of waiting for the actual idle state to change.

To emulate idle states:

1. Open a webpage, such as the Idle detection demo, in a new window or tab.

2. Right-click the page and then select Inspect.

   DevTools opens.

3. Press Esc once or twice so that Quick View opens at the bottom of DevTools.

4. In the Quick View toolbar, click the More tools button, and then select Sensors.

   The Sensors tool opens in the Quick View panel.

5. In the demo page, click the Start detecting idle state button.

   The first time only, an Allow dialog opens.

6. Click the Allow button.

   The demo page is granted the idle detection permission.

7. In DevTools, in the Sensors tool, scroll down to the Emulate Idle Detector state drop-down, and then select an option:

   • No idle emulation
   • User active, screen unlocked
   • User active, screen locked
   • User idle, screen unlocked
   • User idle, screen locked

   The demo page displays the emulated user and screen states:



See also:

• Idle Detection API at MDN.
• Idle detection demo

Emulate hardware concurrency

To emulate how your website performs on devices with different numbers of processor cores, you can override the value reported by the navigator.hardwareConcurrency property. Some applications use this property to control the degree of parallelism of their application, for example, to control Emscripten pthread pool size.

To emulate hardware concurrency:

1. Open a webpage, such as the TODO app demo page, in a new window or tab.

2. Right-click the webpage, and then select Inspect.

   DevTools opens.

3. Press Esc once or twice, so that the Quick View panel is open at the bottom of DevTools.

4. In the Quick View panel, click the More tools button, and then select Sensors.

   The Sensors tool opens in the Quick View panel at the bottom of DevTools.

5. In the Sensors tool, scroll down to the Hardware concurrency checkbox, and then select it.

6. In the number input box, enter the number of cores you want to emulate:



   Caution: Exceeding the default value may degrade performance.

To revert to the default value, click the Reset () button.

Emulate CPU pressure

CPU or compute pressure is a set of reported states that give you an idea of how much workload the system's compute is undergoing, and whether it's near the limit. This information lets you adapt your real-time application, for example, video conferencing or video game, to take advantage of all the available processing power while keeping the system responsive by adapting the workloads in real time.

The Sensors tool lets you emulate the states that can be reported by the Compute Pressure API.

To emulate CPU pressure on your website:

1. Open a webpage, such as the TODO app demo page, in a new window or tab.

2. Right-click the webpage, and then select Inspect.

   DevTools opens.

3. Press Esc once or twice, so that the Quick View panel is open at the bottom of DevTools.

4. In the Quick View panel, click the More tools button, and then select Sensors.

   The Sensors tool opens in the Quick View panel at the bottom of DevTools.

5. In the Sensors tool, scroll down to the CPU pressure section, and then select one of the human-readable pressure states:

   • No override
   • Nominal
   • Fair
   • Serious
   • Critical

6. At the top of DevTools, click the Reload DevTools button:
